72 11 033 Removing and Installing/Replacing Front Left or Right Seat Belt

72 11 033 Removing And Installing/Replacing Front Left Or Right Seat Belt (Reel)







Necessary preliminary work:
- Remove trim panel for door post (top)
- Remove entrance cover trim panel.

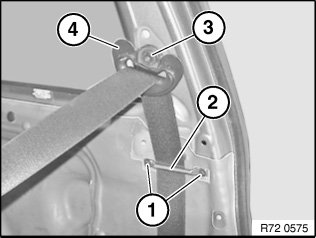

Release screws (1).
Remove belt deflector (2).
Tightening torque 72 11 15AZ.
Release screw (3).
Remove belt deflection fitting (4).
Tightening torque 72 11 03AZ.

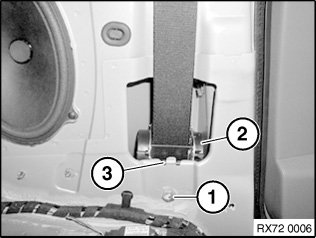

Release screw (1).
Tightening torque 72 11 02AZ.
Remove automatic reel (2).

Installation note:
Automatic reel (2) is coded against incorrect assembly (3).
Replace screw (1) and insert with Loctite.







Release screw (1).
Tightening torque 72 11 04AZ.
Feed seat belt strap and end fitting out of door post trim panel.

Installation note:
Replace screw.

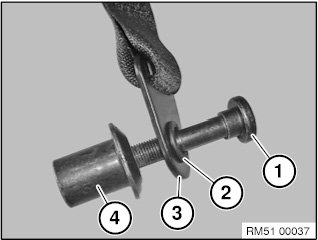

1. Screw
2. O-ring
3. Seat belt strap
4. Bush
