72 12 060 Removing and Installing/Replacing Left or Right Head Airbag

72 12 060 Removing and installing or replacing left or right head airbag

Special tools required:







WARNING:
Observe safety regulations when handling airbag modules.
Incorrect handling can activate airbag and cause injury.

Switch off the ignition.







Installation note:
- Microencapsulated screws must be replaced and may not be reused
- Screw connection must be completed within 20 minutes (start of hardening)
- Microencapsulated screws must not be retightened
- Clean thread of nut beforehand in event of repeated use







Necessary preliminary tasks:
- Remove headlining
- Disconnect battery earth lead

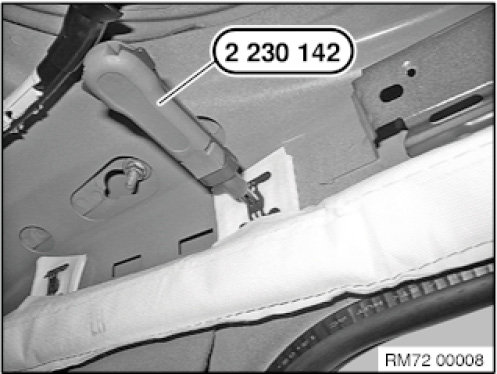

To detach the clamps, use special tool 2 230 142.

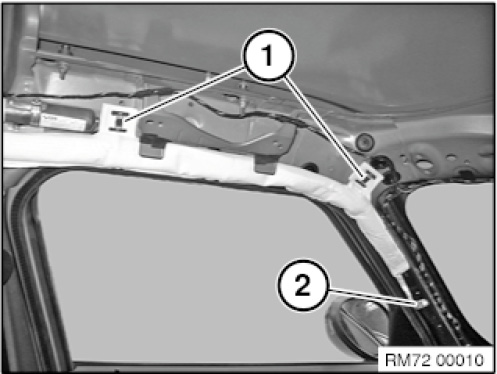

Unlock and remove clamps (1).

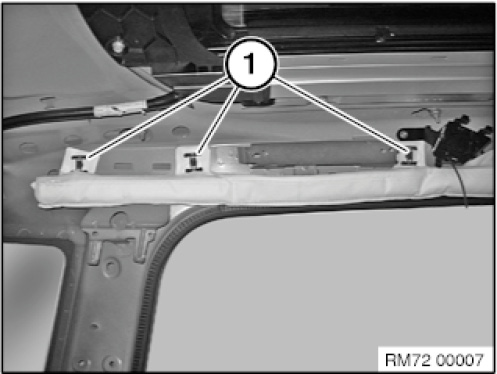

Unlock and remove clamps (1).
Release screw (2) for end fitting.
Tightening torque 72 12 08AZ.

Installation note:
Replace microencapsulated screws.







Unfasten plug connection (2) and disconnect.

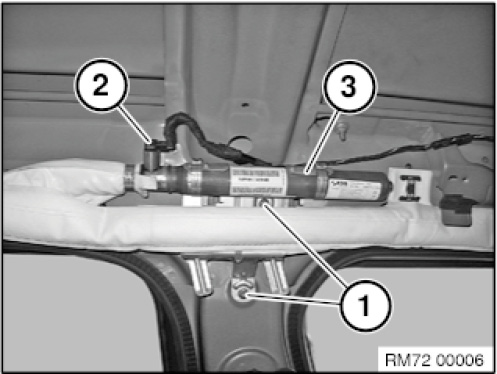

Release bolts (1) and remove holder with gas generator (3).
Tightening torque 72 12 08AZ.

Installation note:
Replace microencapsulated screws.
Gas generator is coded against incorrect assembly.







Installation note:
Make sure holders (1) are fitted correctly.
Retaining lugs must be correctly located in openings of the folding pack.







IMPORTANT:
Make sure that folding pack cannot be installed twisted.
Folding pack must not be damaged.
Clamps of folding pack must not be damaged.
