72 12 006 Removing and Installing/Replacing Airbag Module For Passenger's Knee Protection

72 12 006 Removing and installing/replacing airbag module for passenger knee protection

Special tools required:







WARNING:
Read and comply with safety regulations for handling airbag modules and pyrotechnical belt tensioners.
Incorrect handling can activate airbag and cause injury.







IMPORTANT:
Operations on pyrotechnical devices may only be carried out by authorised experts.
Improper, unauthorised operations may result in serious dangers.
Unauthorised persons are strictly prohibited from performing any operations on this system.







When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).







Necessary preliminary tasks:
- Disconnect battery earth lead
- Remove front door sill cover strip

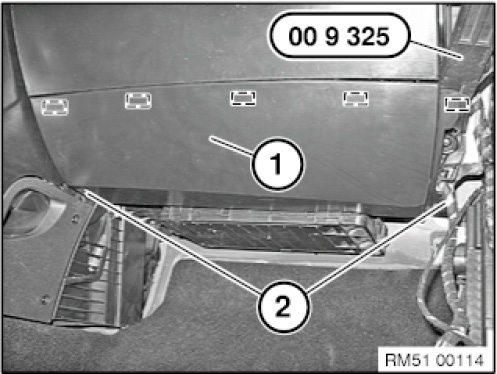

Release screws (2) on bottom right instrument panel trim (1).
Using special tool 00 9 325, unclasp instrument panel trim in marked area, from outside to inside.
Unlock and disconnect airbag plug connection behind.







Installation note:

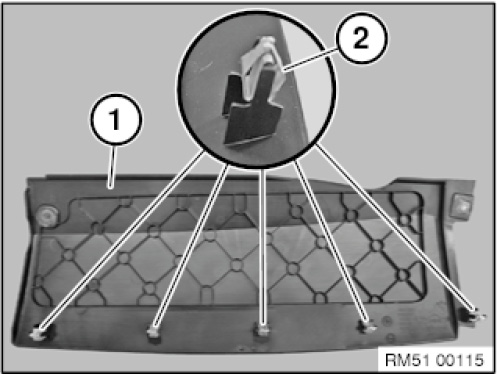

Retaining clips (2) must not be damaged or missing.
If necessary, replace defective clamps.

Replacement
Modify retaining clips (2) on bottom right instrument panel trim (1).
