63 12 870 Replacing Ignition Unit For Left Xenon Headlight (With Xenon Bulb)

63 12 870 Replacing Ignition Unit For Left Xenon Headlight (With Xenon Bulb)







WARNING:
Version with xenon headlights: Danger to life due to high voltage. Therefore, before removing, disconnect all components from the voltage supply (lighting system and ignition off).
Work on the entire xenon lighting system (control unit, ignition unit with bulb) may only be carried out by qualified personnel. Follow instructions for handling light bulbs (exterior lights).







IMPORTANT: Ignition unit and xenon bulb are viewed as a single component and must not be separated.

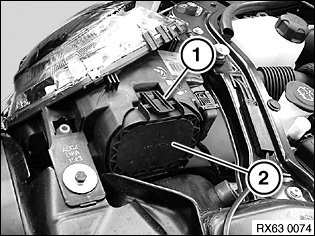

Unlock retaining tab (1) and remove cover (2) from headlight.

Installation note:
Make sure cover (2) is correctly seated on headlight.

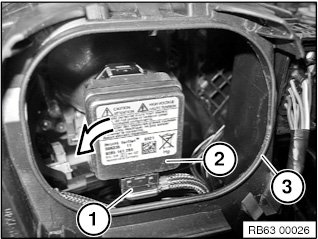

Disconnect plug connection (1).
Turn ignition unit for xenon headlight (2) in direction of arrow and remove from headlight (3).

Installation note:
Make sure ignition unit (3) is exactly seated in headlight.
