63 99 002 Replacing Halogen Bulb For High-Beam Headlight on Left

63 99 002 Replacing Halogen Bulb For High-beam Headlight On Left







WARNING: Follow instructions for handling light bulbs (exterior lights).

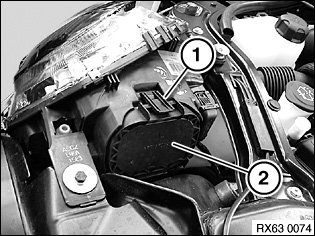

Unlock retaining tab (1) and remove cover (2) from headlight.

Installation:
Make sure cover (2) is correctly seated on headlight.

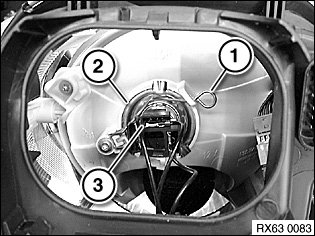

Release lock (1) and pull halogen bulb for high-beam headlight (2) out of headlight.
Disconnect plug connection (3) and remove halogen bulb for high-beam headlight (2).

Installation:
Make sure halogen bulb for high-beam headlight (2) is correctly seated.

Note type of bulb.
