Instrument Cluster / Carrier: Service and Repair

62 10 125 Removing And Installing Complete Instrument Panel







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).







Necessary preliminary work:
- Disconnect battery earth lead
- Remove centre console cover

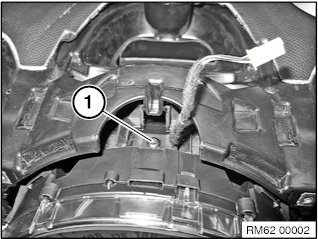

Release screw (1).

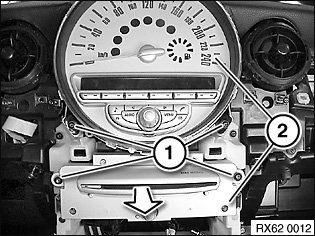

Release screws (1).
Pull back complete instrument panel (2) slightly.
Unlock and disconnect the plug connections behind the instrument panel (2) and remove the instrument panel in direction of arrow.
