Blower Motor: Service and Repair

64 11 212 Removing And Installing/Replacing Heater/air Conditioner Blower







Necessary preliminary work:
- Remove instrument panel trim at bottom left (driver's side)







Release screws (1) and remove cover (2).

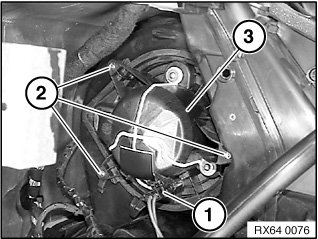

NOTE: For purposes of clarity, illustration shows dashboard removed.







Disconnect plug connection (1).
Release screws (2) and feed out blower (3).
