64 11 872 Removing and Installing/Replacing Servodrive For Blending Flap



64 11 872 Removing And Installing/Replacing Actuator Drive For Blending Flap







Necessary preliminary work:
- Remove dashboard complete with support

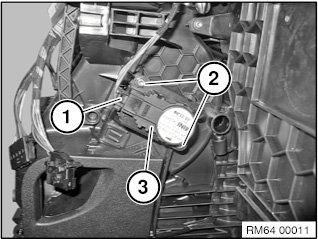

Disconnect plug connection (1).
Release screws (2) and remove actuator drive (3).
