64 11 855 Removing and Installing/Replacing Servodrive For Central Kinematics



64 11 855 Removing And Installing/Replacing Actuator Drive For Central Kinematics







Necessary preliminary work:
- Remove dashboard complete with support

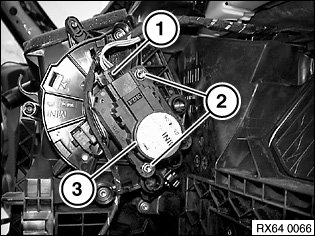

Disconnect plug connection (1).
Release screws (2) and remove actuator drive (3).
