Securing Engine In Installation Position

11 00 670 Secure engine in installation position R60






Special tools required:
- 00 6 080
- 00 6 100
- 00 6 150






Warning!
Danger of injury!
Observe following instructions relating to special tool:
1. Prior to each use, check the special tools for defects, modifications and operational reliability.
2. Damaged/modified special tools must not be used!
3. No changes or modifications may be made to the special tools!
4. Keep special tools dry, clean and free of grease.

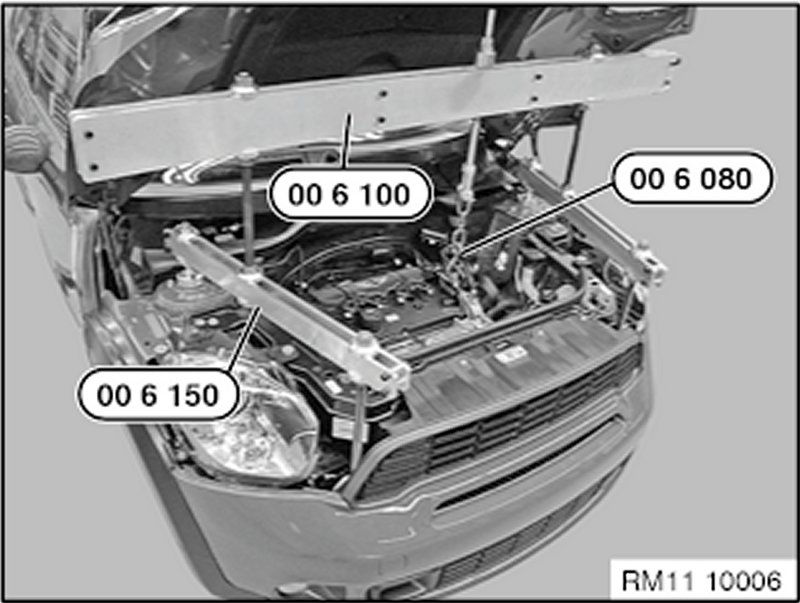

With the aid of an assistance, place cross member 00 6 100 and 00 6 150 on spring strut dome and bumper support.






Align cross member 00 6 150 on spring strut dome and bumper support.
Slacken off Allen screws until the supports can be moved.

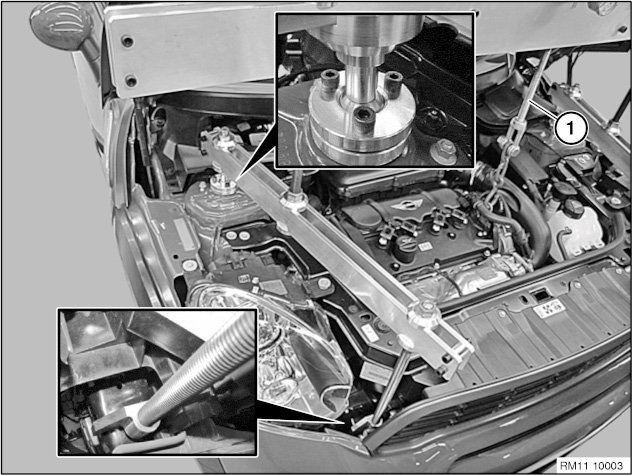

Align cross member 00 6 150 such that spindle (1) is correctly positioned over suspension lug.
Attach hook 00 6 080 in the suspension lug.

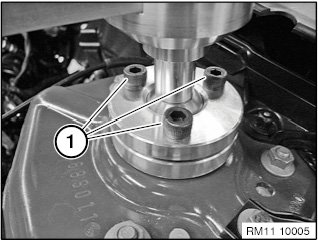

After aligning the special tool, tighten bolts (1).






Important!
Avoid a change of engine position in the transverse or longitudinal direction.
Always make sure there is sufficient clearance between the engine (or its add-on parts) and the body.






Important!
Complete the following tasks without fail before raising the engine.






Left side only:
Remove transmission support bracket






Right side only:

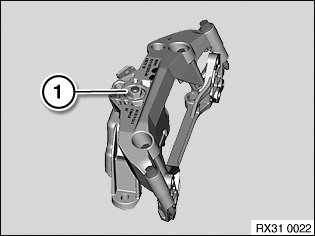

Slacken nut (1).

Installation note:
Replace self-locking nut.

Tightening torque 22 11 2AZ.






Picture shows R56

Important!

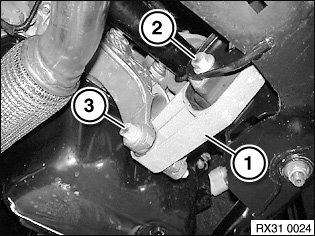

Avoid overelongation of rubber mounts in bracket (1) when raising.

Slacken screws (2) and (3).

Installation note:
Secure engine first to engine or transmission mounts and then tighten down bolts (2) and (3).

Tightening torque 22 11 6AZ.
