22 11 070 Removing and Installing/Replacing Engine Mounting Bracket

22 11 070 Removing and installing/replacing engine mounting bracket






Necessary preliminary work:
- Remove lock bridge
- Remove right charge air duct
- Remove underbody protection.
- Support engine / transmission with car jack

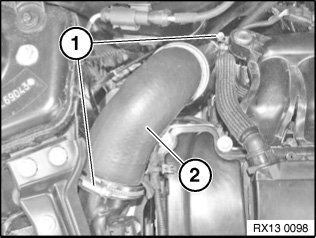

Release clamps (1) and detach charge-air hose (2).

Installation note:
Install charge-air hose (2) dry and free from grease.

Fitting on throttle valve must be dry and free from grease.

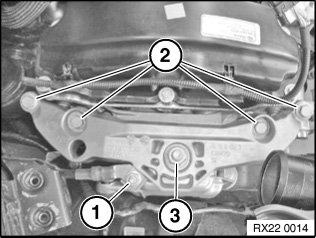

Release nut (1) and remove grounding strap.
Tightening torque 22 11 7AZ.
Unfasten screws (2).
Tightening torque 22 11 2AZ.
Unscrew nut (3).
Tightening torque 22 11 1AZ.
Remove engine support bracket.
