Parking Brake Lever: Service and Repair

34 41 001 Removing and installing Handbrake lever






Necessary preliminary work:
- Fully remove centre console.
After completing repair work, adjust parking brake






Release adjuster (1) of parking brake lever.

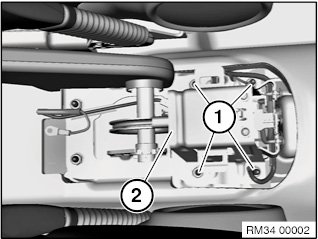

Release nuts (1) and remove holder (2).
If necessary, remove cable clip from holder (2).

Installation note:
Replace self-locking nuts.

Tightening torque 34 41 1AZ.

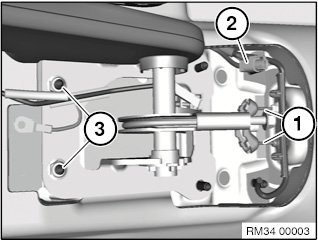

Detach both parking brake Bowden cables (1) from balance arm.
If necessary, remove cable clip (2).
Disconnect plug connection for Handbrake light switch.
Release nuts and remove parking brake lever (1).

Installation note:
Replace self-locking nuts.

Tightening torque 34 41 1AZ.
