35 11 000 Removing and Installing Complete Bearing Block For Foot Pedal

35 11 000 Removing and installing complete bearing support for foot pedal







Necessary preliminary work:
- Remove dashboard trim carrier at bottom left

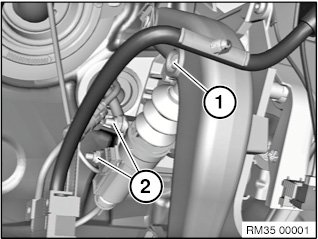

Press pin (1) together and press out.

Release nuts (2) and remove clutch master cylinder.

Clutch hydraulic system remains connected!

Installation note:
Replace self-locking nuts.

Tightening torque 21 52 3 AZ.

Release screw (1).

Installation note:
Tightening torque 35 11 AZ.







NOTE: Accessibility only with a 75 mm long extension (2).

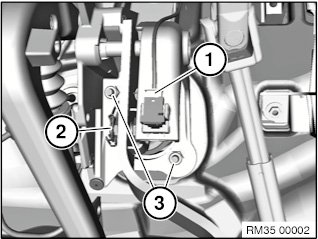

Disconnect plug connection (1) on brake light switch.

Detach retaining clip (2) and press out pin in direction of arrow.

Installation note:
Check retaining clip (2) and replace if necessary.

Make sure retaining clip (2) is correctly engaged.

Release nuts (3) and remove complete bearing support towards bottom.

Installation note:
Replace self-locking nuts.

Tightening torque 35 11 1AZ.

When replacing bearing support:

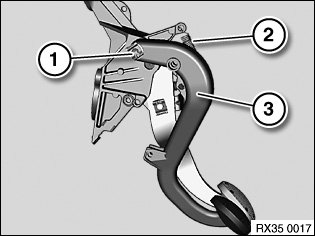

Detach locking clip (1).

Installation note:
Check bearing bushes of clutch pedal and replace if necessary.

Lightly grease bearing bushes.







Check retaining clip (1) and replace if necessary.

Make sure retaining clip (1) is correctly engaged.

Disengage return spring (2) and remove clutch pedal (3).

Modify brake light switch.
