Spoiler: Service and Repair

51 71 412 Removing And Installing/Replacing Rear Spoiler







Necessary preliminary work:
- Remove trim panel for rear window frame at top

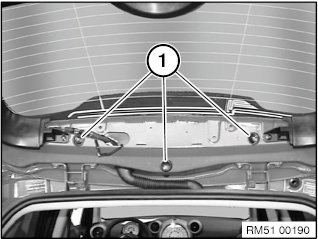

Lever out seal plugs (1) and release screws underneath.

Tightening torque 51 71 7AZ .

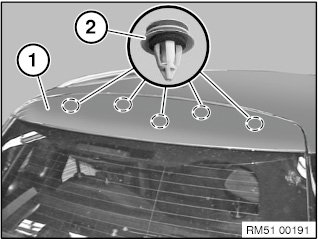

Detach rear spoiler (1) in upward direction from clips (2).







Installation note:

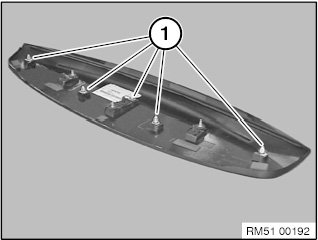

Replace faulty clips (1).

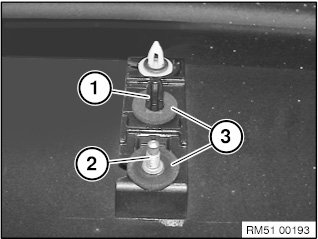

Guide (1), bolts (2) and gaskets (3) must not be damaged or missing.
