Front Seat, Normal, Manual

52 13 000 Removing And Installing Left Or Right Front Seat







WARNING: Observe safety regulations for handling airbag modules and pyrotechnical seat belt tensioners.

Incorrect handling may trigger off pyrotechnical belt tensioners or the side airbag, which may result in injury.







Necessary preliminary work:
- Switch off ignition
- Disconnect battery earth lead

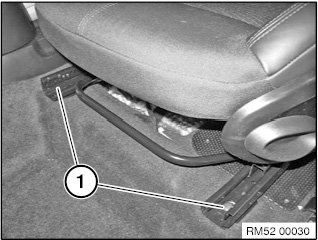

Slide front forward as far as it will go.







Release screws (1).

Installation note:
Replace screws.

Tightening torque 52 13 1AZ.

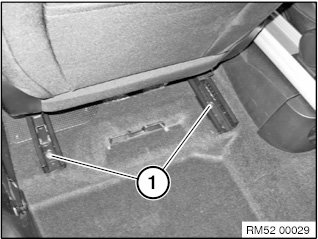

Slide front seat back as far as it will go.

Release screws (1).

Installation note:
Replace screws.

Tightening torque 52 13 1AZ.

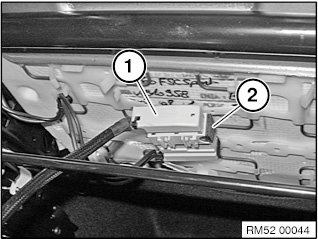

Unlock plug connections (2) and disconnect connector (1).







IMPORTANT:
- Cover entrance for protection purposes (risk of damage).
- Lift out front seat.
