52 26 200 Removing and Installing/Replacing Rear Panel on Right Rear Seat Backrest



52 26 200 Removing And Installing/Replacing Rear Panel On Right Rear Seat Backrest

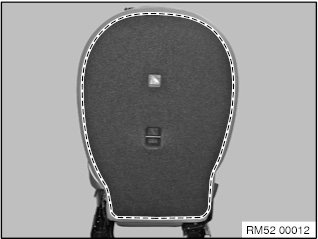

Lever out welt in marked area.

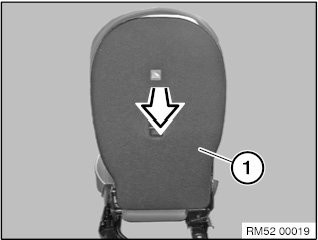

Take rear panel (1) off rear seat backrest.
