52 13 041 Removing and Installing or Replacing Inner Cover on Left or Right Front Seat

52 13 041 Removing And Installing Or Replacing Inner Cover On Left Or Right Front Seat

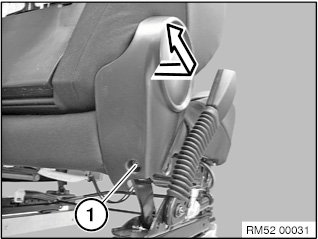

Release screw (1).

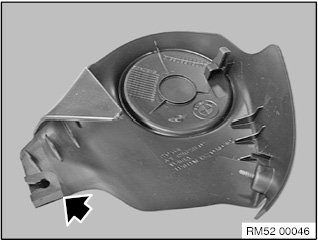

Remove cover in direction of arrow.







Installation note:
Make sure the cover is correctly seated on the seat mechanism.
