52 13 040 Removing and Installing/Replacing Outer Cover on Left or Right Front Seat Backrest (Normal / Manual)

52 13 040 Removing And Installing/Replacing Outer Cover On Left Or Right Front Seat







Necessary preliminary work:
- Remove lever for backrest adjustment on front seat

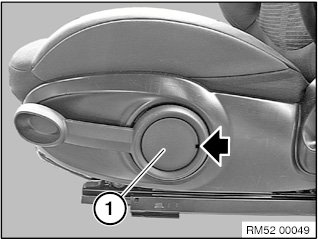

Unclip cover (1).







Installation note:

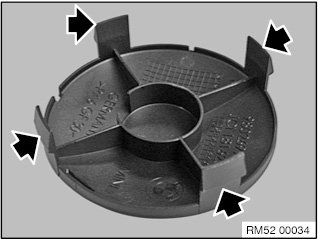

Retaining lugs must not be damaged.

If necessary, replace faulty cover.

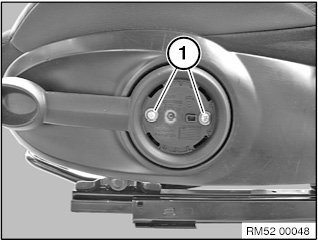

Release screws (1).







Release screws (1).

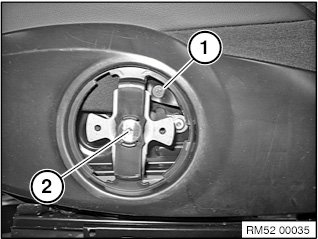

Release screws (2).

Installation note:
Insert screw (2) with Loctite.

Release screw (1).

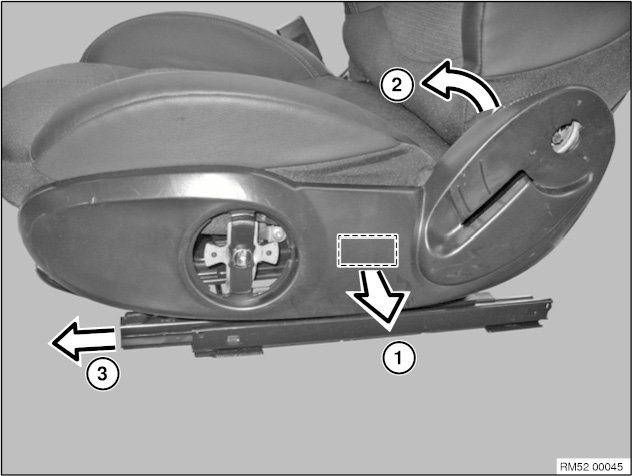

1. Unclip cover in marked area.
2. Swing cover upwards to disengage tab of seat mechanism.
3. Remove cover towards front.







Installation note:
First apply the front cover to the seat mechanism.

Make sure cover is correct seated on the seat mechanism (marked area).
