52 13 031 Removing and Installing/Replacing Backrest Adjustment Lever on Left or Right Front Seat



52 13 031 Removing And Installing/Replacing Backrest Adjustment Lever On Left Or Right Front Seat

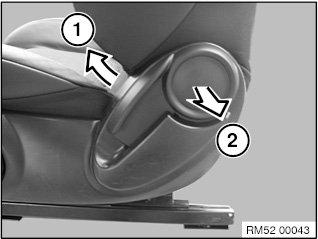

1. Pull up lever upwards.
2. Firmly unclip lever from linkage.







Installation note:

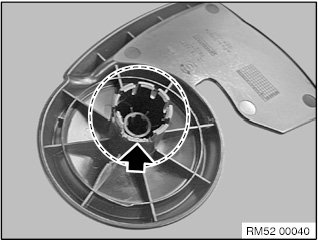

The latch mechanism of the lever must not be damaged.

Replace lever if necessary.
