41 33 040 Replacing Front Panel

41 33 040 Replacing Front Panel







Read contents of Body, General.

For stripping and rigging operations, refer to texts on KSD CD (job number 41 33 040).

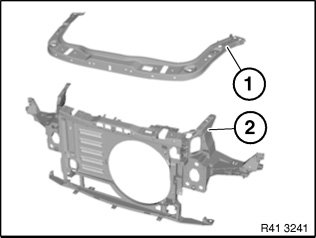

The following new body parts are required (refer to Electronic Parts Catalogue):







- (1) Lock bridge
- (2) Front panel

Remove support for bumper trim.

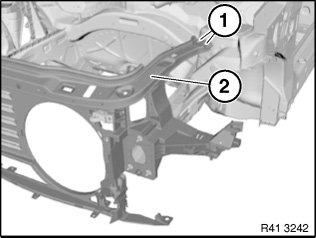

Release screws (1) on both sides of vehicle.

Tightening torque 51 11 7AZ.

Release screws (2) on both sides of vehicle.

Tightening torque 41 33 4AZ.
