Utility Storage Compartment: Service and Repair

51 16 254 Removing And Installing/Replacing Rail







When working with trim panels, be sure that visible surfaces are not damaged or scratched (e. g. with sharp-edged tools).







Necessary preliminary work:
- Remove centre armrest

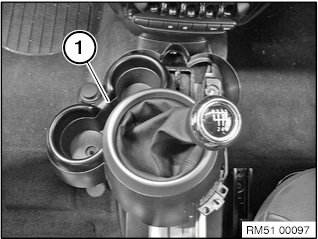

Turn cup holder (1) aside. The required operations are described at:

Removing and installing/replacing front cup holder







Fold inserted mat (1) at rear toward front.

Installation note:
Mount nipples (3) correctly in holding eyelets (2).

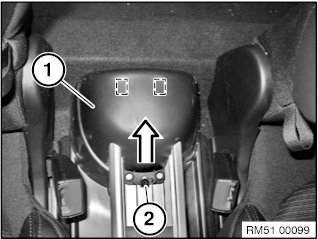

Undo screw (2) on closing cover (1).

Tightening torque 51 16 8AZ.

Closing cover (1) can be unclipped and removed by sliding it to the rear.







Installation note:

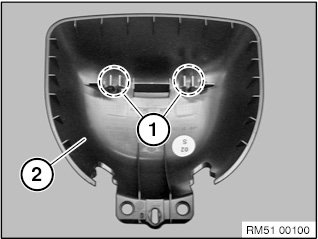

Retaining tabs (2) on the cover panel (2) must not be damaged or missing.

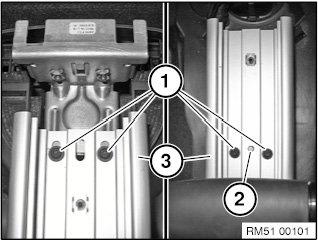

Release rear and front screws (1) from mounting rail (3).

Tightening torque 51 16 9AZ.

Carefully feed out mounting rail (3) and set down.

Installation note:
Feed mounting rail (3) correctly into locating pin (2).







Replacement:

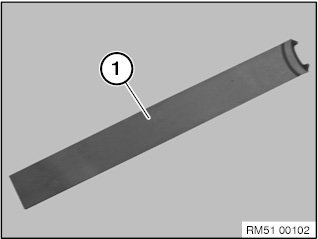

- Modify front and rear insert mats (1).
