51 43 251 Removing and Installing or Replacing Trim Panel For Left or Right Rear Roof Pillar (C-Pillar)

51 43 251 Removing And Installing Or Replacing Trim Panel For Left Or Right Rear Roof Pillar (C-Pillar)







WARNING:
Vehicles with head airbags:
- Read and comply with safety regulations for working on vehicles with airbag systems.

IMPORTANT: Do not use any sharp-edged tools to remove the trim panels (risk of damage to head airbag).

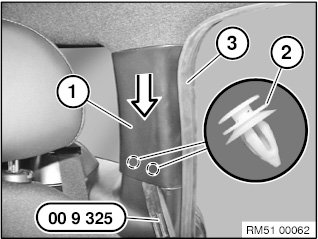

Detach edge protection (3) in area of trim panel (1).

Detach trim panel (1) with special tool 00 9 325 from clip (2).

Remove trim panel (1) downwards.

Installation note:
Make sure edge protection (3) is correctly seated.

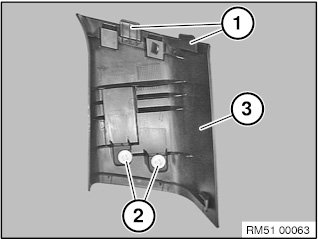

Installation note:
Guides (1) on trim panel (3) must not be damaged.

Replace clips (2).
