51 43 201 Removing and Installing or Replacing Trim Panel For Roof Pillar At Front (A-Pillar), Left or Right

51 43 201 Removing And Installing Or Replacing Trim Panel For Roof Pillar At Front (A-Pillar), Left Or Right







WARNING: Read and comply with safety regulations for working on vehicles with airbag systems.

IMPORTANT: Do not use any sharp-edged tools to remove the trim panel (risk of damage to head airbag).

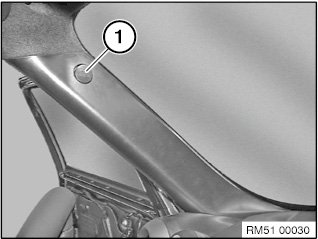

Lever out protective cap (1).







Release screw (1).

Tightening torque 51 43 1AZ.

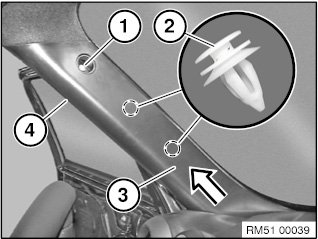

Detach edge protection (4) in area of trim panel (3).

Undo clips (2) and remove trim panel (3) upwards.







Installation note:

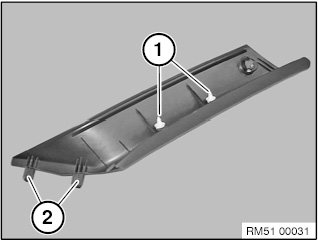

Clips (1) and guide (2) must not be damaged.

Make sure edge protection (4) is correctly seated.
