51 43 150 Removing and Installing or Replacing Trim Panel For Left or Right Door Post (Bottom)

51 43 150 Removing And Installing Or Replacing Trim Panel For Left Or Right Door Post (Bottom)







When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.







Detach edge protection for front door / behind in the area of the trim panel (2).

Push front seat forwards.

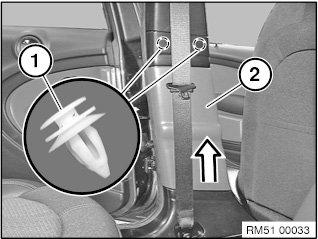

Detach trim panel (2) from clip (1).

Remove trim panel (2) upwards.

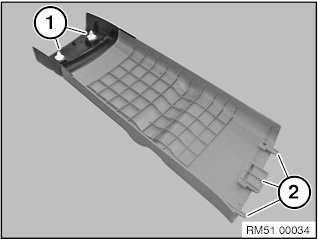

Installation note:
Clips (1) and guides (2) must not be damaged.

Make sure edge the edge protection for the front door / rear door is correctly seated.
