51 43 148 Removing and Installing or Replacing Trim Panel on Left or Right Door Post (Top)

51 43 148 Removing And Installing Or Replacing Trim Panel On Left Or Right Door Post (Top)







Necessary preliminary work:
- Remove trim panel for door post (bottom)

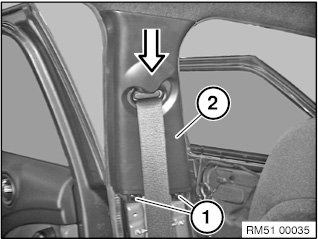

Detach edge protection for front door / behind in the area of the trim panel (2).

Release expanding rivets (1).

Feed out trim panel (2) downwards and remove.

Installation note:
Replace faulty expanding rivets (1).

Make sure edge the edge protection for the front door / rear door is correctly seated.

Replacement only:

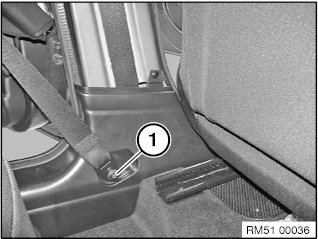

Release screw (1).

Tightening torque 72 11 4AZ

Feed out seat belt strap from trim panel of door post and remove.







1. Screw
2. O-ring
3. Seat belt strap
4. Bush
