51 47 030 Removing and Installing/Replacing Rear Left Door Sill Cover Strip

51 47 030 Removing And Installing/Replacing Rear Left Door Sill Cover Strip







Necessary preliminary work:
- Remove trim panel for door post







Move front seat forwards/up completely.

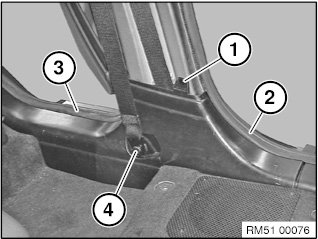

Release expanding rivet (1).

Detach edge protection (3) in area of the door sill cover strip (2).

Release screw (4).

Tightening torque 72 11 4AZ.

Installation note:
Replace screw.

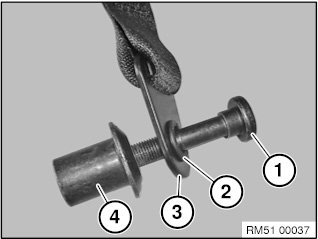

1. Screw
2. O-ring
3. Seat belt strap
4. Bush

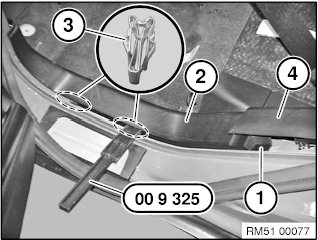

Slightly raise the luggage compartment wheel arch panel (4).

Release expanding rivet (1).

Carefully lever door sill cover strip (2) in the marked area from the clamps (3) with special tool 00 9 325.

Installation note:
Replace clamps (3).

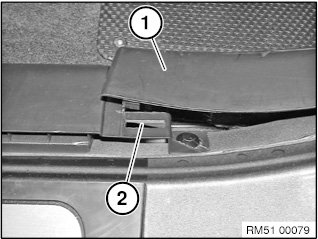

Lever door sill cover strip (1) out of guide (2).

IMPORTANT: Seat shown removed for purposes of clarity.

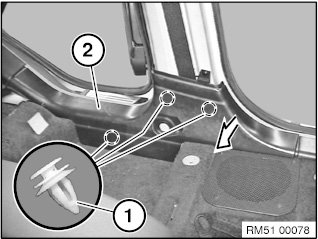

Detach door sill cover strip (2) from clips (1).

Carefully lever out door sill cover strip (2).

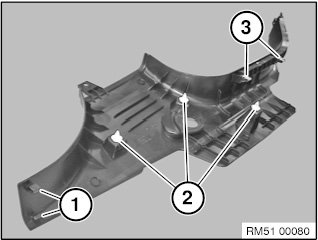

Installation note:
Guides (1) must not be damaged.

Replace clips (2) and clamps (3).
