51 47 000 Removing and Installing/Replacing Front Left or Right Door Sill Cover Strip

51 47 000 Removing And Installing/Replacing Front Left Or Right Door Sill Cover Strip

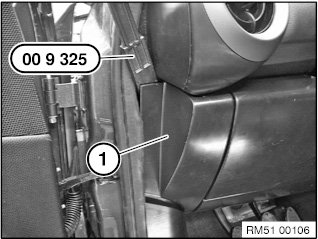

Use special tool 00 9 325 to unclip the side dashboard cover (1) towards the rear.







Installation note:

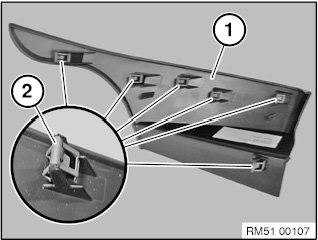

The clamps (2) on the side dashboard cover (1) must not be damaged or missing.

Move front seat to the rear as far as it will go

Detach door edge protection in the area of the door sill cover strip.

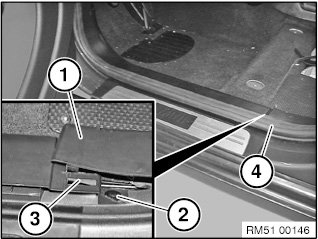

Raise rear door sill cover strip (1) and undo expanding rivet (2).

Installation note:
Make sure door edge protection is correctly seated.

The rear door sill cover strip (1) must be flush in the guide (3).

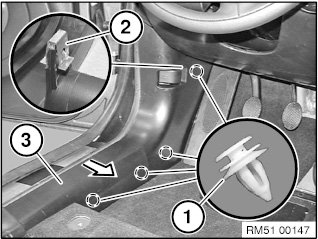

Detach door sill cover strip (3) from clip (1) and clamp (2).

Remove door sill cover strip (3).







Installation note:

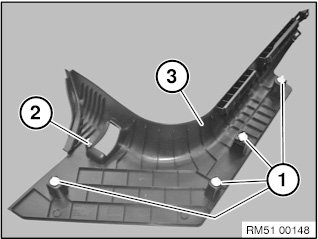

Replace clip (1) and clamp (2) on the door sill cover strip (3).
