51 46 050 Removing and Installing/Replacing Top Cover on Tail Panel

51 46 050 Removing And Installing/Replacing Top Cover On Tail Panel







Remove warning triangle.

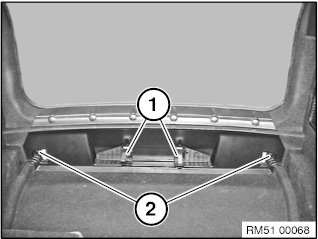

Release screws (1) and remove warning triangle holder.

Release expanding rivets (2).







Detach edge protection (3) in the area of the tail panel cover.

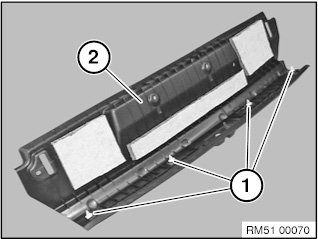

Detach tail panel cover (2) from clips (1) and remove upwards.

Installation note:
Make sure edge protection (3) is correctly seated.







Installation note:
Replace clips (1) on tail panel cover (2).
