51 44 152 Removing and Installing/Replacing Front Roofliner Cover

51 44 152 Removing And Installing/Replacing Front Roofliner Cover

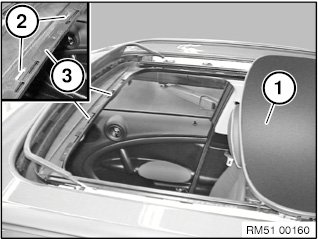

Move glass slide/tilt sunroof cover (1) all the way to the rear.

Unlock latch mechanisms (2) on cover (3).

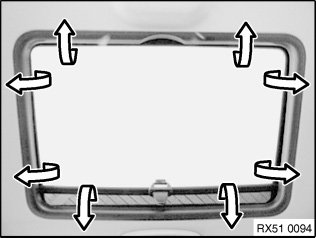

Unclip cover all round from frame and remove.

Installation note:
Make sure cover is correctly seated on roofliner and sliding sunroof frame.

Engage latch mechanisms (2).
