51 16 366 Removing and Installing Right Glovebox With Housing

51 16 366 Removing And Installing Right Glove Box With Housing







Special tools required:
- 00 9 323







Necessary preliminary work:
- Remove lower trim from instrument panel

Open glove box cover if necessary.

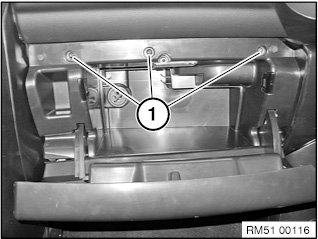

Release screws (1).

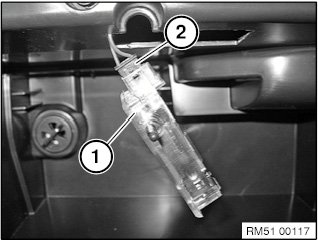

Lever out glove box light (1).

Disconnect plug connection (2).

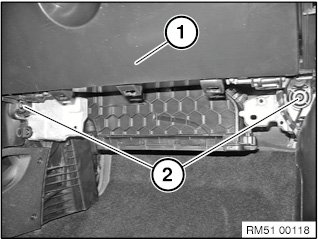

Unfasten screws (2).

Pull out glove box at right with housing (1) and set it down.
