51 16 365 Removing and Installing/Replacing Glove Box Cover

51 16 365 Removing And Installing/Replacing Glove Box Cover







Necessary preliminary work:
- Remove right glove box with housing

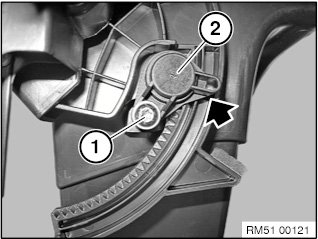

Release screw (1) from damping element (2).

Installation note:
Correctly feed sliding pin on damping element (2) back into slide rail of glove box cover.

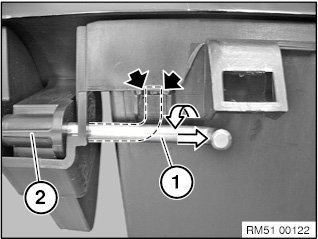

Unlock the hinge bolt (1) at the stop and remove it by turning it to the point where the hinge bolt (1) can be pulled out of the hinge (2) of the glove box cover.

Repeat procedure for second hinge bolt (1).

Installation note:
Correctly lock hinge bolt after installation.
