51 45 435 Removing and Installing/Replacing Cover For Instruments

51 45 435 Removing And Installing/Replacing Cover For Instruments







When working with trim panels, be sure that visible surfaces are not damaged or scratched (e. g. with sharp-edged tools).

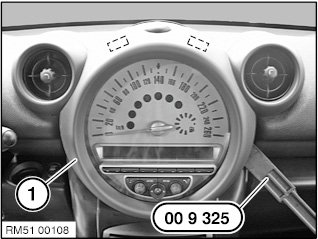

Carefully lever out instruments cover (1) with special tool 00 9 325.

Installation note:
Ensure that the instrument cover (1) is correctly engaged in the marked area.

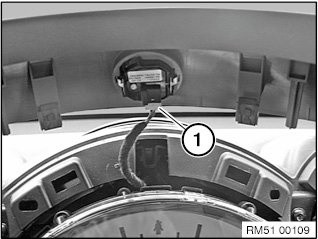

Disconnect plug connection (1).







Installation note:

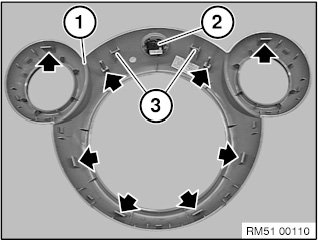

Retaining clips (3), marked retaining pins and retaining tabs on instrument cover (1) must not be damaged or missing.

Replacement
Modify switch for hazard warning flashers (2).
