51 45 430 Removing and Installing/Replacing Air Outlet Vent Cover on Left Side

51 45 430 Removing And Installing/Replacing Air Outlet Vent Cover On Left Side







When working with trim panels, be sure that visible surfaces are not damaged or scratched (e. g. with sharp-edged tools).







Necessary preliminary work:
- Remove trim panel for front roof pillar (A-pillar) at left
- Remove trim for instrument panel at bottom left
- Remove lid of air outlet vent cover at left

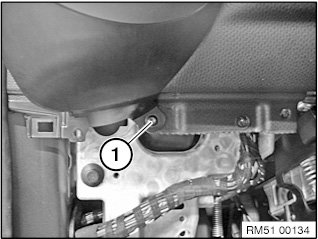

Release bottom screw (1).

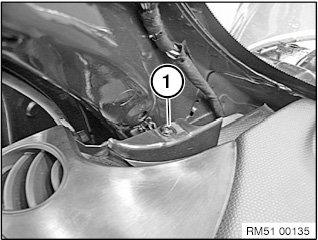

Release upper screw (1).

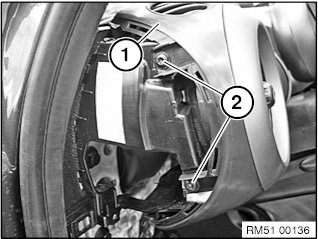

Release screws (2) on air outlet vent cover on left side (1).

Feed out air outlet vent cover on left side (1).
