51 45 181 Removing and Installing/Replacing Trim For Instrument Panel, Bottom Right

51 45 181 Removing And Installing/Replacing Trim For Instrument Panel, Bottom Right







When working with trim panels, be sure that visible surfaces are not damaged or scratched (e. g. with sharp-edged tools).







Necessary preliminary work:
- Remove front door sill cover strip

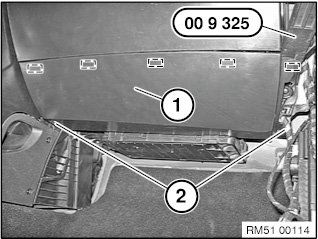

Release screws (2) on bottom right instrument panel trim (1).

Using special tool 00 9 325, unclamp instrument panel trim at bottom right (1), at marked area, from outside to inside.







Installation note:

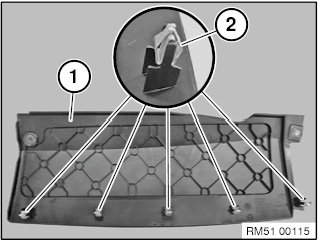

Retaining clips (2) must not be damaged or missing.

Replacement
Modify retaining clips (2) on bottom right instrument panel trim (1).
