51 45 076 Replacing Carrier For Dashboard

51 45 076 Replacing Carrier For Dashboard







When working with trim panels, be sure that visible surfaces are not damaged or scratched (e. g. with sharp-edged tools).







Necessary preliminary work:
- Remove instrument panel top section trim







Release screws (1) of retaining bracket (2).

Set down retaining bracket (2).

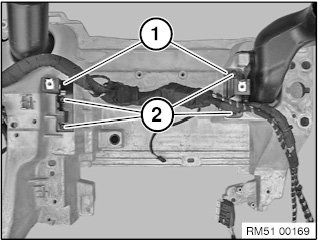

Release screws (2) from dashboard holder on front passenger side (1) on the inside and outside.

Set down both dashboard holders on front passenger side (1).

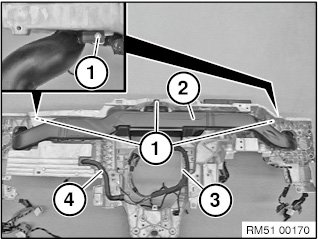

Release screws (1) of air duct (2).

Remove air duct (2) and place to one side.

Pull off cold air duct (4) for glove box.

Unclip wiring harness (3) completely.

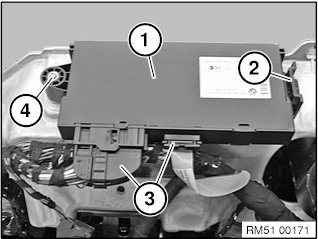

Unlock and disconnect plug connections (3) on Car Access System (1).

Set down wiring harness.

Release screw (4) of Car Access System (1) and set down Car Access System (1).

Unclip retaining bracket (2) of Car Access System and set down.

Remove remaining small parts from support.
