51 45 ... Removing and Installing/Replacing Lid of Air Outlet Vent Cover, Left or Right

51 45 ... Removing And Installing/Replacing Lid Of Air Outlet Vent Cover, Left Or Right







When working with trim panels, be sure that visible surfaces are not damaged or scratched (e. g. with sharp-edged tools).

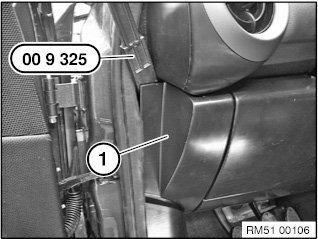

Use special tool 00 9 325 to unclip the side dashboard cover (1) towards the rear.







Installation note:

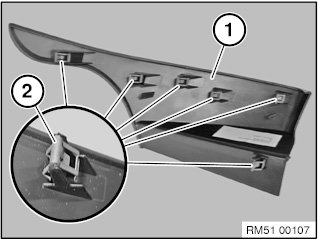

The clamps (2) on the side dashboard cover (1) must not be damaged or missing.

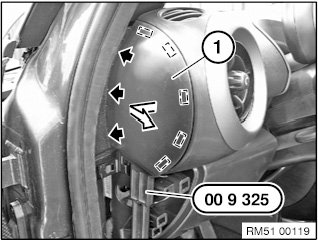

Unclamp lid of air outlet vent cover (1) from the bottom to the top as shown using special tool 00 9 325.

Fold lid of the air outlet vent cover (1) out slightly and feed out toward the rear.







Installation note:

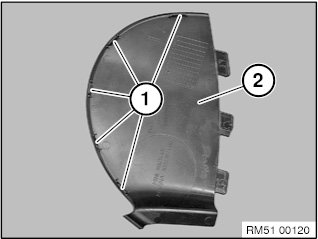

Plastic tabs (1) on lid of air outlet vent cover (2) must not be damaged or missing.
