51 45 ... Removing and Installing/Replacing Bottom Left Dashboard Trim Panel

51 45 ... Removing And Installing/Replacing Bottom Left Dashboard Trim Panel







When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).







Necessary preliminary work:
- Remove trim for instrument panel at bottom left

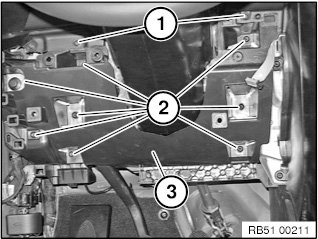

Undo screws (1) and (2) from support for dashboard trim panel (3).

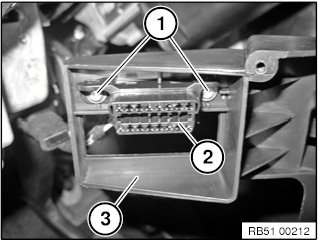

Undo screws (1) from diagnostic socket carrier plate.

Feed diagnostic socket (2) out of support for dashboard trim panel (3).







Replacement

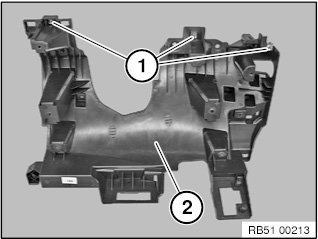

Fit speed nuts (1) on support for dashboard trim panel (2).
