51 16 200 Removing and Installing/Replacing Storage Compartment

51 16 200 Removing and installing/replacing storage compartment







When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

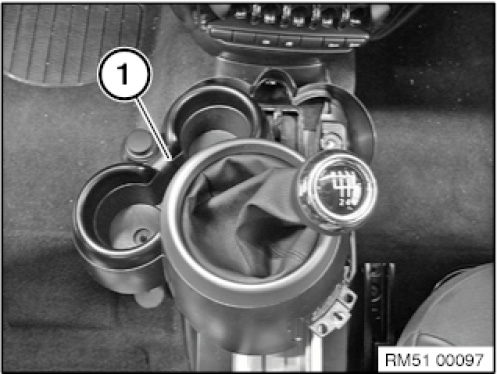

Turn cup holder (1) aside. The required operations are described at:
Removing and installing/replacing front cup holder

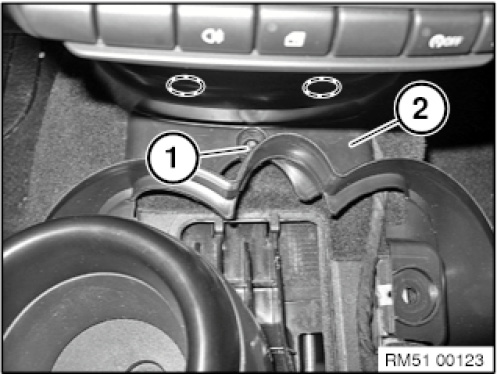

Undo screw (1) from storage compartment (2).
Pull storage compartment (2) toward the back slightly, unclipping it at the marked areas.
Feed out storage compartment (2) toward the side.







Installation note:

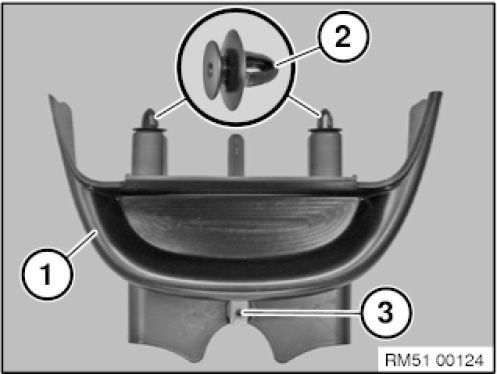

Clips (2) of storage compartment (1) must not be damaged or missing.
