Grille: Service and Repair

51 13 000 Removing And Installing/Replacing Front Grill Centre Section

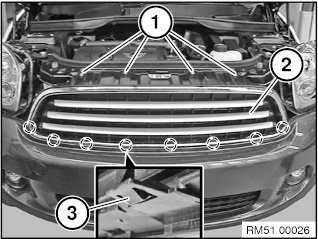

Release screws (1).

Tightening torque 51 13 6AZ.

Release front ornamental grille (2) out of the lower latch mechanisms (3) with a forceful pull forward.







Installation note:

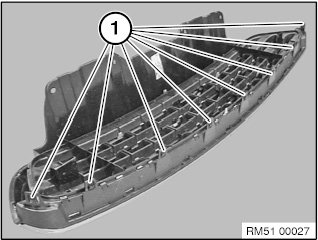

Latch mechanisms (1) must not be damaged.
