31 11 008 Removing and Installing/Replacing Rear Reinforcement Bar

31 11 008 Removing and installing/replacing rear reinforcement bar







IMPORTANT:
Observe safety informations for raising the vehicle
Driving without the reinforcement bar is not permitted.

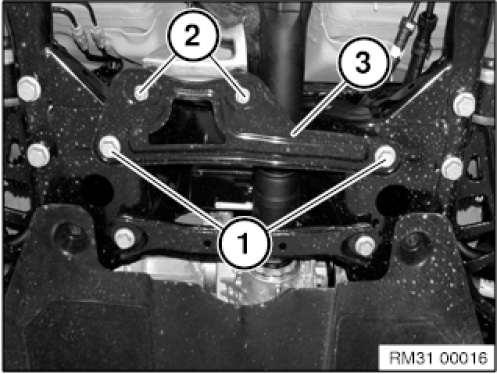

Release screws (1).
Tightening torque 31 11 6AZ

Unscrew nuts (2).
Tightening torque 18 20 7AZ (diesel-engine car)
Tightening torque 18 31 8AZ (petrol-engine car)

Remove reinforcement bar (3).
