Rear Fender Liner: Service and Repair

51 71 041 Removing And Installing/Replacing Rear Left Or Right Wheel Arch Cover







Necessary preliminary work:
- Remove rear wheel

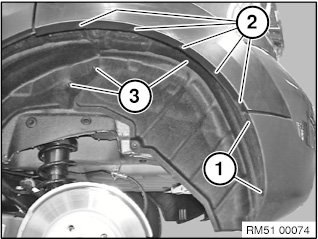

Release screws (1).

Release expanding rivets (2).

Unscrew nuts (3).

Installation note:
Replace expanding rivets.

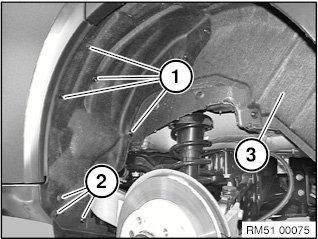

Unscrew nuts (1).

Release expanding rivets (2).

Remove wheel arch cover (3).

Installation note:
Replace expanding rivets (2).
