Front Fender Liner: Service and Repair

51 71 040 Removing And Installing/Replacing Front Left Or Right Wheel Arch Cover







Necessary preliminary work:
- Remove front wheel 36 10 300 Removing or Installing Front or Rear Wheel

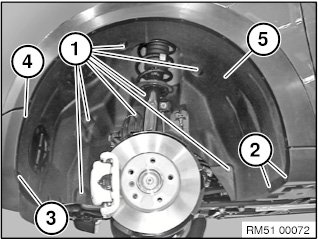

Release expanding rivets (1).

Installation note:
Replace expanding rivets (1).







Release screw rivets (1).

Release expanding rivet (3).

Release screws (2 and 4).

Remove wheel arch cover (5).

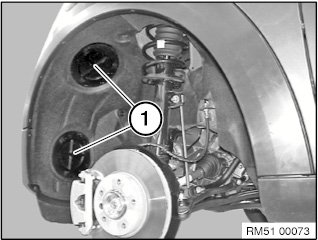

Replacement:

If necessary, modify lid (1)
