Underbody Cover: Service and Repair

51 75 501 Removing And Installing/Replacing Left Or Right Vehicle Underbody Cover

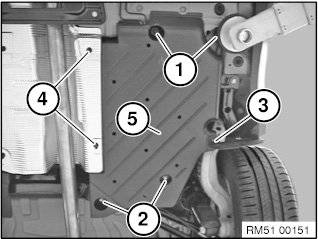

Release plastic nuts (1).

Release screws (2 and 4).

Release expanding rivets (3) and remove the underbody panelling (5).

For right side operation, use mirror image of graphics.

Installation note:
Replace faulty retaining elements.

Make sure underbody panelling is correctly seated.
