51 13 015 Removing and Installing/Replacing Trim Ring For Left or Right Headlight

51 13 015 Removing And Installing/Replacing Trim Ring For Left Or Right Headlight

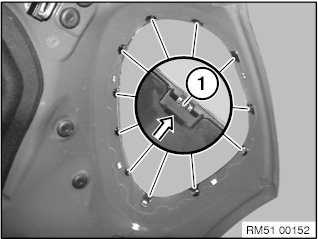

Release clip (1) in direction of arrow.

Remove trim ring.







Installation note:

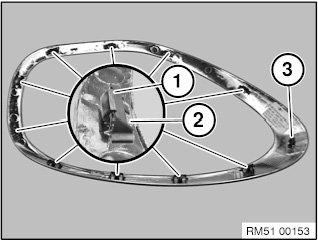

The clip (1) , guide (2) and centering (3) must not be damaged.

Replace faulty clips.

Mount trim ring with pre-installed clips (1) on engine compartment lid.
