51 14 006 Replacing Badge Emblem on Left or Right Front Door

51 14 006 Replacing badge emblem on left or right front door







IMPORTANT: The Instructions for adhering badge emblem serve as the basis for these repair instructions and must be followed without fail.

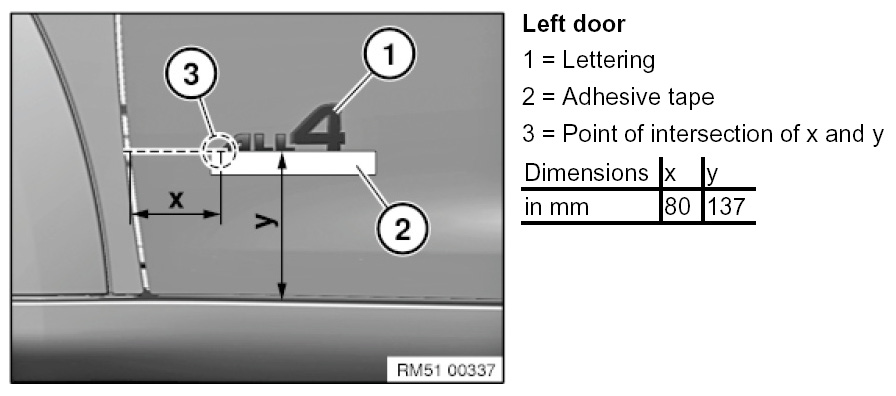

Attach the upper edge of the adhesive tape (2) offset upward by dimension "y" horizontally to the lower edge of the door.
Mark dimension "x" on adhesive tape (2).
Affix lettering (1) as follows:
- Lower edge of lettering (1) with upper edge of adhesive tape (2)
- Outer lower corner point of lettering (1) with point of intersection (3)
Affix lettering (1).
Remove adhesive tape (2).







Procedure same as for left-hand door.
