Trunk / Liftgate Latch: Service and Repair

51 24 100 Removing and installing/replacing tailgate lock







Necessary preliminary tasks:
- Remove cover from tail panel

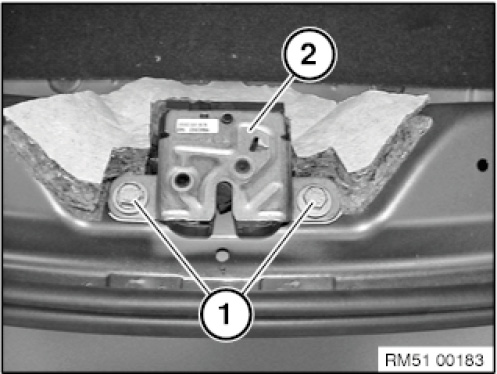

Release screws (1) on tailgate lock (2).
Tightening torque 51 24 1AZ







Unfasten plug connection (1) and disconnect.
Remove tailgate lock (2).

Installation note:
Adjust tailgate catch.
