Trunk / Liftgate Hinge: Service and Repair

41 62 540 Removing And Installing/Replacing Both Hinges For Rear Lid (Rear Lid Removed)







Read contents of Body, General.

For stripping and rigging operations, refer to texts on KSD CD (FR number 41 62 540).







Operation is described on the left side. Right side identical.

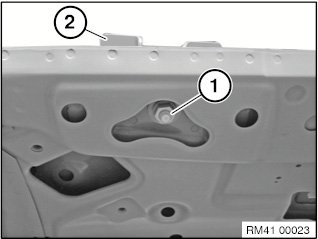

Release nut (1) on vehicle.

Tightening torque 41 62 2AZ.

Remove hinge (2).







Installation note:

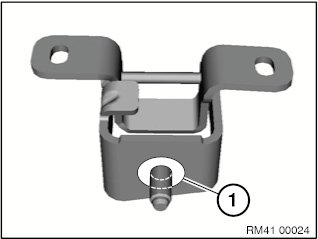

Before final assembly, apply sealing compound in area (1).

Adjust rear lid on the basis of the body gap dimensions.
