41 33 695 Removing and Installing Lock Bridge

41 33 695 Removing And Installing Lock Bridge







Necessary preliminary work:
- Remove centre radiator grille
- Remove headlight

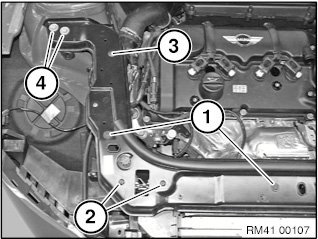

Release screws (1).

Undo screws (2) for bonnet locks .

Only vehicles with turbocharger:

Lift out expanding rivet (3).

Release screws (4).

Tightening torque 51 11 7AZ

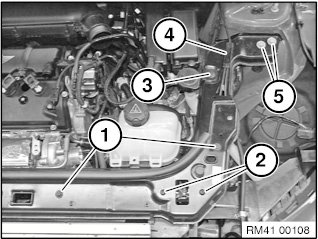

Release screws (1).

Undo screws (2) for bonnet locks .

Lift out expanding rivet (3).

Release pull cable (4) for bonnet locks.

Undo screws (5) and remove lock bridge.

Tightening torque 51 11 7AZ
