Hood Hinge: Service and Repair

41 61 060 Removing And Installing/Replacing Hinge For Engine Compartment Lid







For stripping and rigging operations, refer to texts on KSD CD (job number 41 61 060).







Carry out repair work with a 2nd person helping.

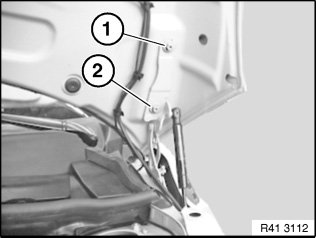

Release nuts (1) and (2).

Tightening torque 41 61 1AZ.

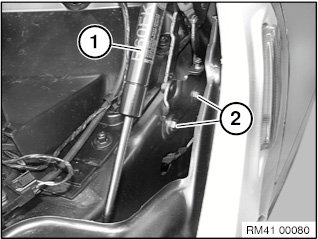

Release gas pressure spring (1) on engine compartment lid.

Release screws (2) and remove hinge.

Tightening torque 41 61 2Z.

Installation note:
Adjust hinge together with engine compartment lid.
