Fuel Door Release Actuator: Service and Repair

67 11 555 Removing And Installing/Replacing Actuator Drive For Fuel Filler Flap

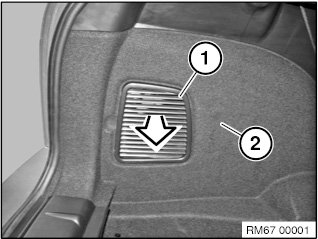

Remove cover (1) in direction of arrow from luggage compartment side panelling (2).

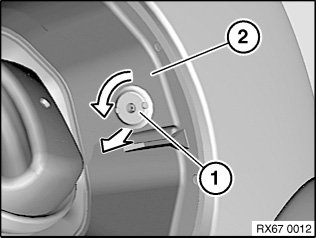

Turn sleeve (1) with a suitable tool approx. 45° in direction of arrow and pull out of receptacle (2).







Installation note:

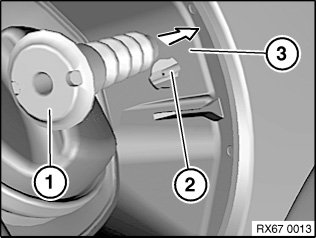

Slide sleeve (1) over fuel filler flap locking pin (2).
Make sure sleeve (1) is correctly engaged in cover housing (3).

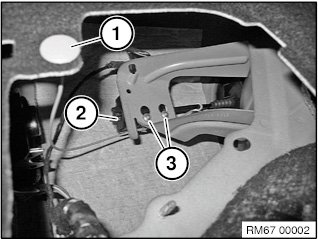

Disengage emergency release mechanism (1).
Slacken screws (2), do not release fully.
Carefully feed out the actuator drive (2).







Replacement:
Release screws (1).

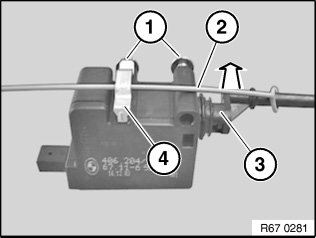

Disengage emergency operation tensioning strap (2) from clamp (4) and remove towards front.
If necessary, unclip locking pin (3) in direction of arrow from actuator drive for tank filler flap.
Unclip clamp (4) from actuator drive for tank filler flap (3).
